目前可以的技術問題是提供一種能夠保證在鋼筋加工時，確保人員操作方便，并為操作人員提供一個舒適空間的可重復利用的鋼筋加工棚結構。一種可重復利用的鋼筋加工棚結構，其創新點在于什么地方呢？

At present, the technical problem that can be solved is to provide a reusable reinforcement processing shed structure that can ensure convenient operation of personnel and provide a comfortable space for operators during reinforcement processing. What is the innovation of a reusable steel bar processing shed structure?

基座，基座具有若干個且等間距設置澆筑在地面上，且基座內預埋有若干地腳螺栓；

The base is provided with several foundation bolts which are placed and poured on the ground at equal intervals and embedded in the base;

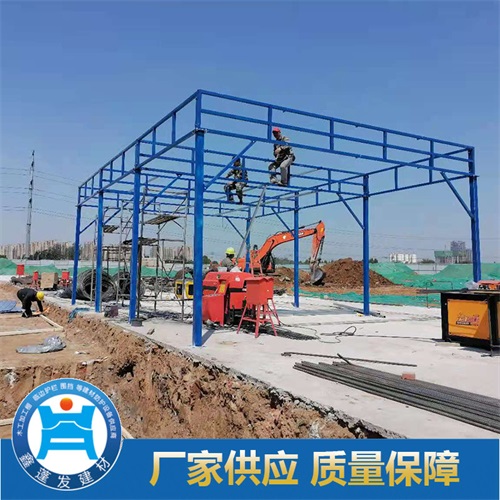

鋼圓管立柱，鋼圓管立柱的柱底設置有焊接鋼板，鋼圓管立柱底端的焊接鋼板與基座上的地腳螺栓進行連接固定；鋼圓管立柱頂部采用采用鋼板焊接封堵；

Steel round pipe column, the column bottom of the steel round pipe column is provided with a welded steel plate, and the welded steel plate at the bottom of the steel round pipe column is connected and fixed with the foundation bolt on the base; The top of the steel round pipe column is sealed with steel plate welding;

耳板，耳板焊接在鋼圓管立柱頂端側面；

The padeye is welded on the top side of the steel pipe column;

鋼管桁架，鋼管桁架垂直于鋼圓管立柱的方向固定在耳板上，鋼管桁架上搭設有互相垂直形成井字型結構的縱橫向排架體系，且縱橫向排架體系上依次鋪設有方木和彩鋼板并固定。

Steel pipe truss, the steel pipe truss is fixed on the ear plate perpendicular to the direction of the steel round pipe column, the steel pipe truss is set with a vertical and horizontal bent system that is perpendicular to each other to form a herringbone structure, and the vertical and horizontal bent system is successively paved with square timber and color steel plate and fixed.

進一步地，鋼圓管立柱之間通過交叉拉桿進行加固。

Further, the steel round pipe columns are reinforced by cross tie rods.

進一步地，鋼管桁架向鋼圓管立柱的側邊延伸2～3m。

Further, the steel pipe truss extends 2~3m to the side of the steel pipe column.

進一步地，鋼管桁架與鋼圓管立柱之間采用φ18～20mm的鋼筋進行焊接支撐，形成三角穩定體系。

Furthermore, between the steel pipe truss and the steel pipe column φ 18~20mm reinforcement shall be welded and supported to form a triangular stability system.

進一步地，鋼管桁架上搭設互相垂直形成井字型結構的縱橫向平面排架體系的鋼管間距≤30cm，且上下兩排排架體系的外側間距為70～80cm。

Furthermore, the steel pipe spacing of the longitudinal and transverse plane bent system that is perpendicular to each other to form a "herringbone" structure erected on the steel pipe truss is ≤ 30cm, and the outer spacing of the upper and lower bent systems is 70-80cm.

優點在于：

Advantages:

（1）鋼筋加工棚結構安裝、拆卸操作方便，并可做成標準化及定型化，與現有鋼管式鋼筋加工防護棚相比，可在施工現場按照實際情況進行加工制作，安裝方便，結構設計合理，整體美觀，可以重復使用，降低成本，特別適用于工程施工中，主要是可重復使用的鋼筋加工鋼防護棚；

(1) The structure of the reinforcement processing shed is easy to install and disassemble, and can be made into a standardized and stereotyped structure. Compared with the existing steel pipe type reinforcement processing protective shed, it can be processed and manufactured at the construction site according to the actual situation. It is convenient to install, has a reasonable structural design, is beautiful as a whole, can be reused, and reduces costs. It is especially suitable for engineering construction, mainly the reusable reinforcement processing steel protective shed;

（2）可重復利用的鋼筋加工棚結構，其中，鋼管桁架與鋼圓管立柱之間采用φ18～20mm的鋼筋進行焊接支撐，形成三角穩定體系，使得整體結構更加穩固；此外，鋼管桁架上搭設形成的井字型結構的縱橫向平面排架體系的上下兩排排架體系的外側間距控制在70～80cm，方便安裝標語。

(2) Reusable steel bar processing shed structure, among which, steel pipe truss and steel pipe column φ 18~20mm steel bars are welded and supported to form a triangular stability system, making the overall structure more stable; In addition, the outer space between the upper and lower bent systems of the longitudinal and transverse plane bent system of the cross shaped structure erected on the steel pipe truss shall be controlled at 70~80cm to facilitate the installation of safety slogans.
